Architecture The application follows a DDD approach with a hexagonal clean architecture. BIG WORDS!, what does it mean? it means the following:

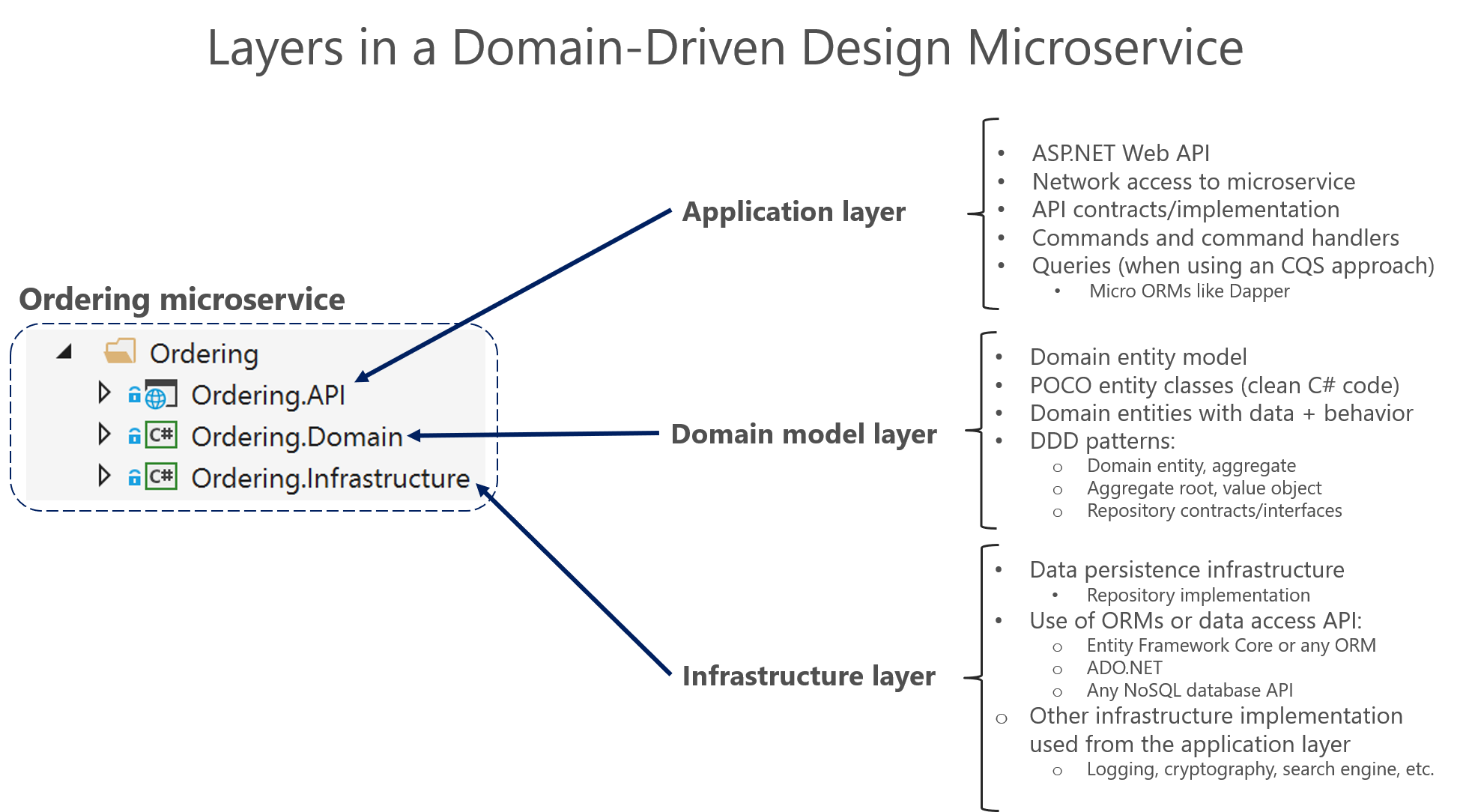

We have a directory for each domain entitiy (i.e. time entries, technologies, activities, etc) Inside each entity directory we have other 3 directories (application, domain and infrastructure) I'll leave this drawing to understand how these three folders work and what logic should be included in these directories

ddd.png More information Here

Stack Technologies

Recommended link tdd_dojo

Setup environment

Requeriments

  • Install python 3.6 or 3.7 (recommendation to install python pyenv)
  • Install node (recommendation to install node nvm)

Add variables

In the root directory /time-tracker-backend create a file .env with these values

export MS_AUTHORITY=XXX
export MS_CLIENT_ID=XXX
export MS_SCOPE=XXX
export MS_SECRET=XXX
export MS_ENDPOINT=XXX
export DATABASE_ACCOUNT_URI=XXX
export DATABASE_MASTER_KEY=XXX
export DATABASE_NAME=XXX
export FLASK_APP=XXX
export FLASK_ENV=XXX
export AZURE_APP_CONFIGURATION_CONNECTION_STRING=XXX
export USERID=XXX
export FLASK_DEBUG=True
export PYTHONPATH=XXX
export DB_CONNECTION=XXX
export ENVIRONMENT=XXX

In the directory /V2 create a file .env with these values

DB_USER=XXX
DB_PASS=XXX
DB_NAME=XXX

Install dependencies

In the Directory /V2

make install

Start Project

In the directory /V2

npm run offline
docker compose up or make start-local

Makefile to run a locally CI

Execute the next command to show makefile help:

$ make help
  • To install the dependencies type the command make install
  • To test the project type the command make test
  • To run the local database type the command make start-local

How to contribute to the project

Clone the repository and from the master branch create a new branch for each new task.

Branch names format

For example if your task in Jira is TT-48 implement semantic versioning your branch name is:

   TT-48-implement-semantic-versioning

Commit messages format

Below there are some common examples you can use for your commit messages semantic version :

  • feat: A new feature.
  • fix: A bug fix.
  • perf: A code change that improves performance.
  • build: Changes that affect the build system or external dependencies (example scopes: npm, ts configuration).
  • ci: Changes to our CI or CD configuration files and scripts (example scopes: Azure devops, github actions).
  • docs: Documentation only changes.
  • refactor: A code change that neither fixes a bug nor adds a feature. It is important to mention that this key is not related to css styles.
  • test: Adding missing tests or correcting existing tests.

Example

fix: TT-48 implement semantic versioning

Prefix to use in the space fix:
`(fix: |feat: |perf: |build: |ci: |docs: |refactor: |style: |test: )`
